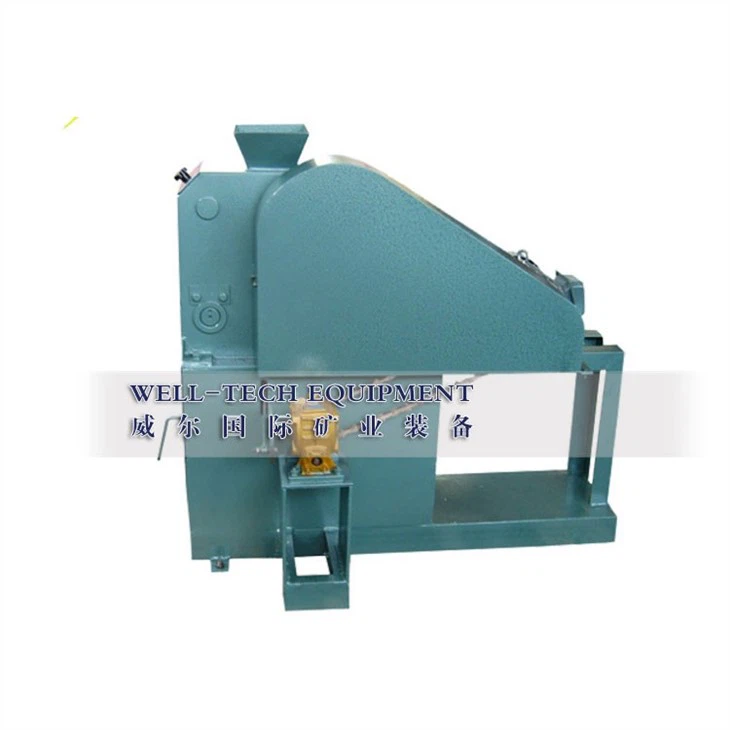

lab Jaw crusher/PE PEF type jaw crusher
Brief Introduction
Lab Jaw Crusher is mainly composed of organisms, eccentric shafts, static jaws, moving jaws, adjustment devices, transmission devices, power parts, etc., used for the medium and fine crushing of raw materials, such as coal, coal gangue, coke, limestone, pyrite, phosphorus Ore etc. Our product has reasonable design, simple structure, easy operation and use, and is widely used in the metallurgical industry, mining industry, chemical testing industry, coal, coking and other industries.
Features
Lab Jaw Crusher uses high-quality motors, strong load-bearing capacity, low energy consumption, low vibration, and has better waterproof and dustproof functions. Our products are made of thick material, unique structure and durable. It is an important equipment in laboratories and laboratories of metallurgy, geology, building materials, and chemical industries, and can also be used in small-scale ore crushing production.
PE type jaw crusher technical parameters
model | 100x60 | 150x250 |
Feeding size（mm） | ≤45 | ≤150 |
Output size（mm） | 6-15 | 10-40 |
rotation（r/min） | 650 | 285 |
capacity（kg/h） | 50-400 | 700-5000 |
motor（kw） | 1.5 | 5.5 |
PEF type jaw crusher
The body is welded with 12-16mm iron plate. When fixing the jaw plate on the wall, springs and lock nuts are installed on the back wall, lining plates are installed on both sides, and two sliding bearings are installed above the side plates to support the eccentric shaft. The eccentric shaft is supported in the hole of the sliding bearing, and the lower part is connected with the adjusting mechanism through a toggle plate. The eccentric shaft is driven by a belt pulley to rotate the motor, and the movable jaw seat moves with the eccentric shaft according to the eccentric shaft. The adjusted trajectory collides and squeezes with the fixed jaw on the opposite fixed jaw seat.
PE type jaw crusher technical parameters
Model | PEF100x60 | 100x125 | 150x125 |
Feeding opening（mm) | 100x60 | 100x125 | 150x125 |
Feeding size（mm） | ≤50 | ≤80 | ≤100 |
Output size（mm） | 0.1-15.1(it can adjust) | 5-35(it can adjust) | 6-38(it can adjust) |
rotation（r/min） | 600 | 500 | 500 |
Capacity（kg/h） | 45-550 | 400-1500 | 400-3000 |
motor（kw） | 2.2 | 3 | 3 |
